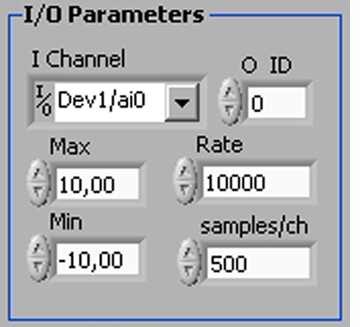

I/O parameters

“I Channel” – The name and the number of DAQ Analog Input channel connected to recording electrode. Its activity is visualized at the Moving Chart indicator (see Figure 4). By default, it is the same channel that has been used in “TEST” clustering procedure (Fig. 1a). This parameter is setted up automatically, but can be manually changed here if need.

“Max” – maximal input voltage allowed (check your NI DAQ AI limits to set up this parameter). This parameter is setted up automatically, but can be manually changed here if need.

“Min” – minimal input voltage allowed (check your NI DAQ AI limits to set up this parameter). This parameter is setted up automatically, but can be manually changed here if need.

“O ID” – the number in the system of computer sound board. This parameter is setted up automatically, but can be manually changed here if need.

“Rate” –digitalization rate of the analogue input signal. It must be the same that was used during “TEST” clustering procedure. This parameter is setted up automatically, but can be manually changed here if need (not recommended).

“sample/ch”-  the number of samples to be acquired during each measurement session. For instance, under digitalization rate of 10.000 samples/s, the acquisition of 500 samples will takes 20 ms (default value). You can change it upon your wish.
