Trigger (hardware settings)

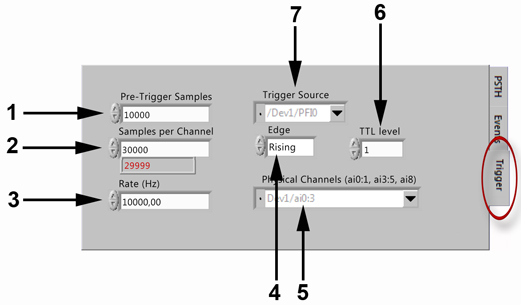

In this Tab before start your acquisitions you should define desirable digitalization settings and trigger parameters.

1 – The number of pre-triggered samples. In this specific case 10000 samples equal 1 s (Digitalization rate specified in 3 is 10000 samples/s);

2 – Total duration of the trial. In such case 30000 is equal 3 s (Digitalization rate specified in 3 is 10000 samples/s);

3 – Digitalization rate specified (samples/s);

4 – Physical channels for event TTL signals;

5 – Direction of electrical edge for trigger;

6 – Adjustments for TTL level;

7 – Physical trigger channel.
